25 ton per day direct cooling block ice machine

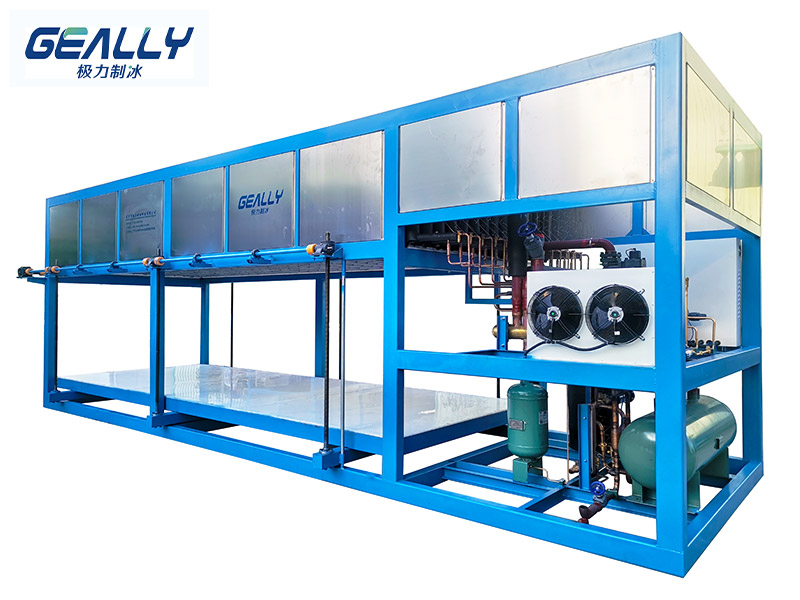

Dongguan strives to produce 25 ton per day direct cooling block ice machine as a complete set of equipment. The complete set of equipment is prepared in the factory and transported to the customer's site to receive water and power to debug the ice. Energy-saving, small area, low production environment requirements, labor-saving, and ice can be made by one person. The ice mold is made of aluminum alloy, which is durable and does not rust.
Parameter table of 25 ton direct cooling block ice machine per day：
Site layout of 25 ton direct cooling block ice machine with daily production：
25 ton direct cooling block ice machine ice application：
The characteristics of Dongguan Jili 25 ton direct cooling block ice machine：
1. The single machine ice production output is 1 ton to 30 tons. The integrated machine design, pull to the scene to connect water and electricity to open the machine ice；
A. Direct cooling block ice machine mold size and weight can be customized non-standard: common: 10KG/block, 15KG/block, 20KG/block, 25KG/block, 35KG/block, 40KG/block, 50KG/block, 100KG/block.
B. The output of a single set of direct cooling block ice machine: 1 ton to 40 tons per day. The parameters of the ice maker are professionally provided according to the specific requirements of users.
.
2. Try to achieve a fully automatic intelligent control system for the 25 ton direct cold block ice machine
A. Automatic ice making;
B. Automatic deicing, no need to switch valve;
C. Automatically add water, the water level is automatically controlled and adjustable;
D. Automatic lifting, quick and intelligent ice out
E. The switch time can be set at will;
F. Intelligent control of machine failure and shutdown protection;
G. Sectional time-sharing control, which can use the power of staggered peaks to save more energy;
3. Features of 25 ton direct cold block ice machine:
A. The entire ice-making system has a modular design and is easy to operate;
B. Energy saving: The electricity produced is about 65 kWh per ton of ice cubes, and the traditional brine tank uses about 80 kWh per ton;
C. Hygiene: The direct cooling block ice machine does not require other heat exchange carriers, the refrigerant directly evaporates and exchanges heat to make ice, the mold material is aluminum alloy, and the ice cubes are edible if the water quality reaches the standard;
D. Low operating cost: The operation is the simplest, and the area is much smaller than that of the traditional salt water tank ice making; the hot fluorine automatic deicing, the deicing speed is fast, and it saves manpower and electricity;
E. Stable and durable: Adopting circulating hot air ice making technology and direct thermal expansion heat exchange technology, the product performance is stable; the evaporator material aluminum alloy is not rusty, will not be deformed, does not need to be replaced, one investment, lifetime use;
F. Deicing quickly and quickly: After the water freezes into ice, the ice making system heats in the opposite direction, and the hot fluorine enters the evaporator to de-ice, and the de-icing speed is fast; after de-icing, it directly falls on the ice conveying device without driving and other lifting equipment ；
G. Fast ice formation time: The best direct cooling block ice machine is generally designed to produce ice twice in 24 hours, and the freezing time is about 10 hours each time it is turned on. The freezing time of traditional salt water tanks is generally 12 hours;
The main products of Dongguan Jili Refrigeration Technology Co., Ltd. are: flake ice machine, direct cooling block ice machine, salt pool ice machine, sea water marine ice machine, tube ice machine, pellet ice machine, vacuum precooler, concrete cooling System, automatic ice storage and delivery system, artificial snow making system, ice maker evaporator, ice crusher, chiller and cold storage engineering products and services! The products are widely used in large ice factories, supermarket chilling, self-service hot pots, restaurants, vegetables and fruits preservation and transportation, aquatic products preservation, aquatic product processing, meat food processing, slaughter processing cooling, chemical dye cooling, concrete mixing cooling, coal mine cooling , Ocean-going, artificial ski resorts, large-scale factory cooling and other refrigeration and cold storage industries.
