The overall description of JLF-2T small freshwater flake ice machine:
GLF series freshwater flake ice machine is a new type of high-efficiency ice-making unit developed for the ice requirements of freshwater cold storage and cooling operations. The unit adopts an integrated overall design, suitable for a wide range of applications such as fishery food processing, meat food processing, supermarket logistics, water conservancy and hydropower, concrete cooling of construction engineering, etc. It has corrosion resistance, fast ice production, dry and clean ice flakes, beautiful shape, and difficult It has the characteristics of agglomerates, simple and convenient to use, energy saving and environmental protection, and ice can be made after power is connected. The flake ice machine is made of stainless steel and anti-corrosion alloy aluminum. The service life can reach more than 10 years. The whole process is intelligently controlled and does not require personnel to operate.
Parameter table of the 2 ton flake ice machine:
NO. | parameter name | Value T (tons) | |
1 | Product name | Daily production of 2 tons of fresh water flake ice machine | |
2 | model | JLF-2T | |
3 | Quantity | 1 | |
4 | Daily output | 2000KG/24H | |
5 | Shipping weight | 800kg | |
6 | size | Host/Freezer | 1500mm x 1100mm x1250mm /1500mm x 1500mm x1300mm |

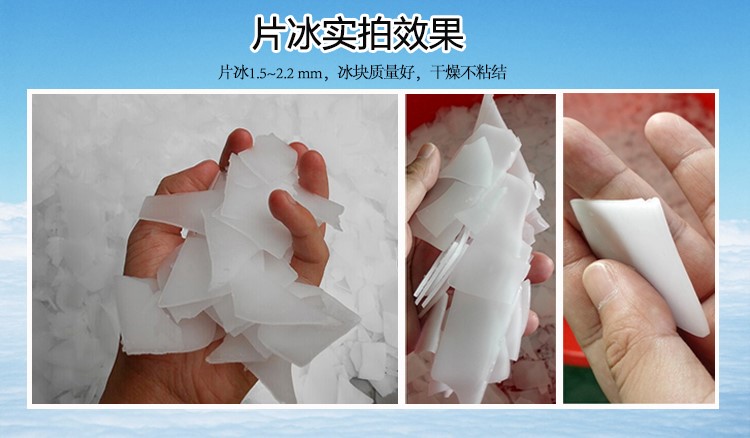

Flake ice | Dry and smooth, environmentally friendly and hygienic (in line with food hygiene requirements, edible), no obvious edges and corners, 1.8-2.5mm thick, temperature -0.C----5.C | ||
7 | Running noise | 55dB | |
8 | Refrigerant | R404A | |
9 | Evaporation temperature | -22℃ | |
10 | Condensing temperature | +40℃ | |
11 | Rated cooling capacity | 13.5KW | |
12 | Rated water inlet temperature | 25℃ | |
13 | Rated ambient temperature | 30℃ | |
14 | compressor | Types of | Fully enclosed piston compressor |
Brand | Meiyoule | ||
Quantity | 1 set | ||
model | NTZ215 | ||
power | 7.3kw | ||
15 | Fan power | 0.76kw | |
16 | Brine pump power | 0.016kw | |
17 | Reducer/acid and alkali resistant pump power | 0.38kw /0.18KW | |
18 | Power supply form | 380V/3P/50Hz | |
19 | Flake ice density | 650kg/m3 | |
20 | power consumption | 17.4kW/1H | |
Extremely 2 tons of flake ice machine configuration table:
序號 | Configuration name | Brand | Origin |
1 | compressor | Danfoss | Denmark |
2 | Condenser (high efficiency copper tube fin) | Try hard | China |
3 | Condenser fan | Shimmer | |
4 | Expansion valve | Emerson | United States |
5 | Brine pump | Yacoi | China |
6 | Other refrigeration accessories | Danfoss/Emerson | Denmark/United States |
7 | Electrical original | LG | Korea |
8 | Evaporator/Freezer | Try hard | |
9 | Reducer/acid and alkali resistant pump | Lisen/Niu Dun | |
Remarks: The above technical parameters are standard technical parameters. We can provide customers with various non-standard customized ice making equipment. If you have any requirements, please contact us. We will choose the most suitable ice maker configuration for you according to your needs.
GEALLY flake ice machine has the following advantages:
Clean and hygienic: The flake ice machine can be made of SUS304 stainless steel and other alloy materials, and the hygienic level can reach the international HACCP and FDA certification standards.
Easy to install: The flake ice machine can be air-cooled integral type or container type. It only needs to be connected to water and electricity to make ice, and the installation is simple and convenient.
Simple maintenance: The flake ice machine adopts a modular design. On-site maintenance is simple. Valves are installed on the front and back of the important parts, which is convenient for customers to replace vulnerable parts and maintain the machine. At the same time, the convenience of product use is fully considered.
Intelligent control: The flake ice machine adopts PLC automatic control, one-button operation is simple to make ice, complete protection functions, automatic fault diagnosis, real-time display of machine working conditions, compact and beautiful product structure, humanized and reasonable design, and intelligent failure Alarm protection function (high and low voltage protection, full ice protection, water shortage protection, phase sequence protection, current overload protection, etc.).
Brand accessories: the main refrigeration accessories are from internationally renowned brand authentic accessories, such as: German Bitzer/American Copeland/Italy Lai Fukang/Taiwan Hanbell compressor; electrical accessories use French Schneider, South Korea LG, Germany Siemens; refrigeration accessories use Danfoss in Denmark, ALCO&Emerson in the United States, etc.-reliable quality and stable performance.
High efficiency and energy saving: The flake ice machine can be customized according to the customer's local climatic conditions, and the refrigeration system is optimized to improve the operating efficiency of the entire system and achieve energy saving and high efficiency.
Stable and durable: It integrates the ice-making system and processing technology and experience at home and abroad. The machine is stable and reliable, and the designed service life is more than 10 years.
Patented technology: Jili flake ice machine is designed and manufactured with industry-leading patented technology. It has a complete set of production and processing equipment and the production process of the evaporator, the core part of the flake ice machine. It is currently one of the few domestic manufacturers that can independently produce evaporators. Its products are exported to foreign countries, and it is the preferred supplier of most domestic refrigeration companies in the same industry; the products have passed CE certification and ISO9001 certification, and quality assurance.
Professional customization: We can provide you with professional suggestions, and can also tailor-made according to your specific requirements to meet the different needs of different customers, such as: the use of refrigeration accessories, the size of the product, the split installation, and the voltage Requirements, material selection and cooling methods, etc.
Service advantages: GEALLY provides customers with a complete service system, from product design, manufacturing, transportation, installation, technical training, equipment maintenance, maintenance, and spare parts to spare parts.
